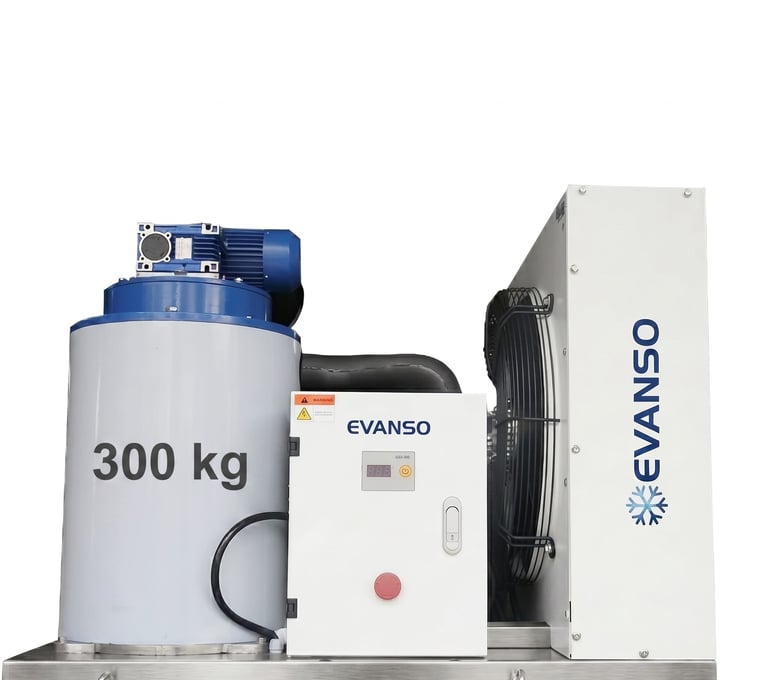

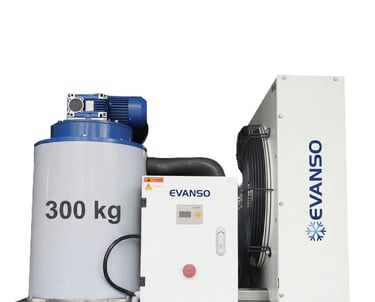

300 KG/DAY FLAKE ICE MACHINE

300 kg capacity air-cooled flake ice machine is used for cooling purposes in vegetable and fruit preservation, supermarket applications, fish and meat processing plants, fermentation and dairy production, chemical processes, and the concrete and mining sectors. The thin-structured flake ice, which provides rapid cooling, increases process efficiency while preserving the freshness of products.

Application Areas

Supermarket chains
Seafood and fish markets
Fishing boats
Hotels and restaurants
Food processing plants
Vegetable and fruit preservation systems
Concrete cooling applications
Mining and industrial processes

Technical Specifications

Ice thickness: 1.5 – 2.5 mm
Flame ice temperature: approx. -7°C
Cooling system: Air-cooled (water-cooled production available upon request)
Standard operating conditions:
Ambient temperature: 25°C
Water inlet temperature: 15°C
Evaporation temperature: -22°C
Condenser temperature: 40°C

Main Components Used

Embraco/Tecumseh
GVN
Copeland
Danfoss

Customizable according to customer needs, with different voltage options and special production requests. Its robust construction, low energy consumption, and high efficiency make it an ideal solution for commercial and industrial applications.

300 kg/Day Flake Ice Machine
500 kg/Day Flake Ice Machine
1 Ton/Day Flake Ice Machine
3 Ton/Day Flake Ice Machine
5 Ton/Day Flake Ice Machine
10 Ton/Day Flake Ice Machine
15 Ton/Day Flake Ice Machine
20 Ton/Day Flake Ice Machine
25 Ton/Day Flake Ice Machine
30 Ton/Day Flake Ice Machine
40 Ton/Day Flake Ice Machine
Block Ice Machines
Cube Ice Machines
Tube Ice Machines

Flake Ice Machine

Frequently Asked Questions (FAQ)

1. Pre-Quotation Information

To provide you with the most suitable ice machine solution, it is important to share the following information:
What type of water will be used? (Seawater, saltwater, or freshwater)
In what location and under what environmental conditions will the machine operate?
What is the ambient temperature and water inlet temperature?
What is the existing electrical infrastructure and voltage information?
In what application will the produced ice be used?
What is the preferred cooling type? (Air-cooled, water-cooled, or evaporative cooling)

Based on this information, the EVANSO engineering team will design the most suitable system for your needs.

2. Installation and Commissioning

By Customer Installation

EVANSO ice machines are designed to be installed by the customer themselves, with user manuals, technical documentation, online support, and video conferencing support.

By EVANSO Technical Team Installation

Upon request, EVANSO's expert technical team provides installation and commissioning services.

Technical personnel will be dispatched to the site depending on the project size.
The entire system is professionally assembled, inspected, and commissioned.
Electrical and water installations, mounting equipment, and necessary infrastructure must be ready before installation.
For international projects, accommodation and transportation arrangements may be provided by the customer.

3. Warranty and Technical Support

EVANSO ice machines are covered by a 1-year warranty from the date of shipment.
During the warranty period, necessary spare parts for manufacturing defects are provided free of charge.
Post-installation user training and technical information support are provided.
Long-term technical consulting and service support is offered for all machines.
Our experienced technical service team provides rapid intervention and solution support.
Our technical support service is available year-round via phone and email.

4. Fault Reporting and Technical Inspection Process

In case of any technical problem, the following process is applied:

A detailed written description of the fault must be provided.
The machine model, serial number, and operating conditions must be specified.
Submitting photos or videos showing the fault will expedite the process.
The EVANSO technical team conducts the necessary inspection and performs a fault analysis.
Solution proposals and technical guidance are communicated to the customer as soon as possible.

EVANSO aims to provide reliable and sustainable technical support to its customers with its after-sales service approach.
