Semi-Automatic Ice Filling & Ice Packaging System

Product Description

The Semi Automatic Ice Filling & Packaging System is designed for efficient weighing, filling, and sealing of flake ice, tube ice, cube ice, and crushed ice into plastic bags. The system combines an inclined screw conveyor, weighing platform, filling hopper, and pedal-operated sealing unit for practical and hygienic ice packaging operations.

Ideal for:

• Ice factories

• Fish & seafood processing plants

• Supermarkets

• Concrete cooling ice plants

• Food processing facilities

• Cold storage operations

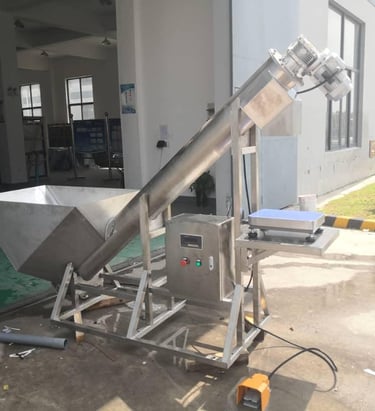

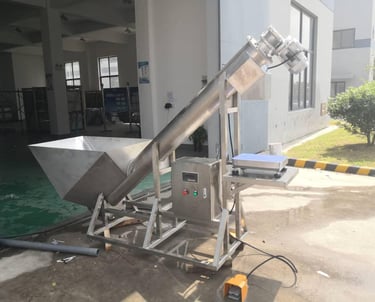

System Components

1. Stainless Steel Feeding Hopper

2. Inclined Screw Conveyor

3. Semi Automatic Filling Section

4. Digital Weighing Platform

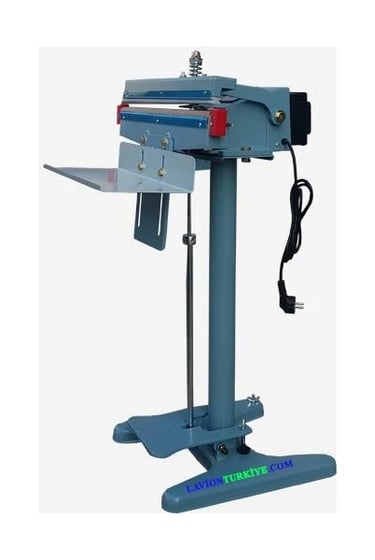

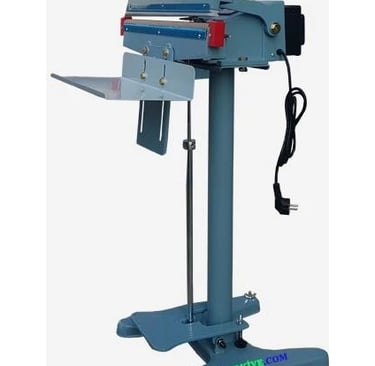

5. Pedal Operated Bag Sealer

6. Stainless Steel Main Frame

Technical Specifications

ParameterSpecificationCapacity3–8 bags/minute*Bag Weight Range1–25 kgIce TypeFlake, Cube, Tube, Crushed IceMaterialSUS304 Stainless SteelConveyor TypeInclined Screw ConveyorWeighing SystemDigital Platform ScaleSealing TypeFoot Pedal Heat SealerPower Supply220V / 50Hz / 1PhInstalled Power1.1 – 2.2 kWControl TypeSemi AutomaticOperationManual bag positioningHygiene DesignFood-grade constructionApprox. DimensionsDepends on configurationOptional FeaturesPrinter, Coding, Conveyor, Larger Hopper

* Capacity varies according to bag size and operator performance.

Operating Principle

1. Ice is loaded into the stainless steel hopper.

2. The screw conveyor transfers ice upward automatically.

3. Ice is discharged into the weighing/filling section.

4. Operator places the plastic bag on the filling platform.

5. Desired weight is filled into the bag.

6. Filled bag is sealed using the pedal-operated heat sealer.

Advantages

• Compact and economical design

• Easy operation and maintenance

• Hygienic SUS304 construction

• Suitable for different ice types

• Accurate filling with reduced product loss

• Low labor requirement

• Stable and continuous feeding system

Optional Equipment

• Automatic weighing system

• Continuous band sealer

• Date coding printer

• Bag conveyor system

• Ice storage bunker integration

• Mobile wheel structure

Application Areas

• Packaged edible ice production

• Fish market ice packaging

• Industrial cooling applications

• Supermarket ice bagging

• Concrete cooling projects

Recommended Bag Sizes

Bag TypeRecommended CapacitySmall Retail Bags1–3 kgMedium Bags5–10 kgIndustrial Bags15–25 kg

Notes

• Machine capacity depends on ice temperature, ice type, and operator speed.

• All stainless steel parts are manufactured from food-grade SUS304 material.

• Custom production is available according to project requirements.
